SIBO 7" POE Flush Wall Mounted Android Touch Tablet With Serial Port UART GPIO For Industrial Control

Ask Lasest Price
Brand Name :	SIBO
Model Number :	SIBO
Certification :	CE, FCC
Price :	159-179 USD/pc
Payment Terms :	T/T
Supply Ability :	5000pcs/month
Delivery Time :	5-25 working days

Add to Cart

Product Details
Company Profile

SIBO 7" POE Flush Wall Mounted Android Touch Tablet With Serial Port UART GPIO For Industrial Control

SIBO Q896 Android Tablet PC RJ45

Glass Wall Mounting Android OS Tablet RJ45 with PoE

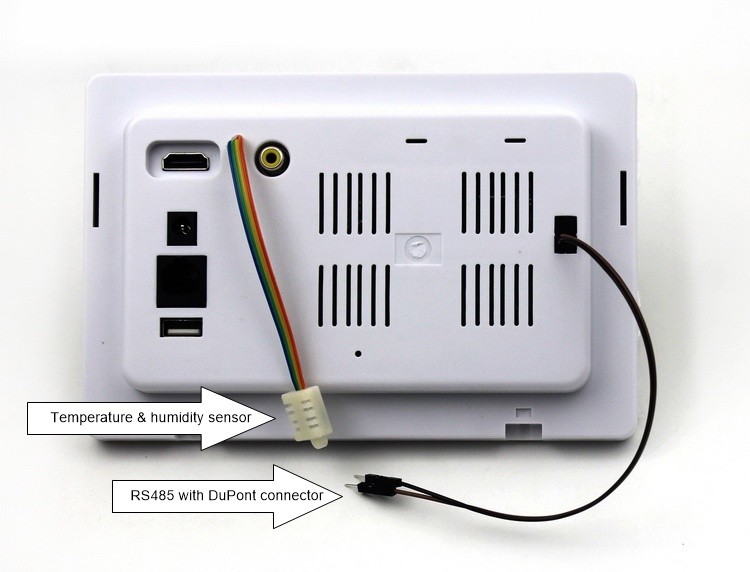

Q896S Tablet Back Side:
1.HDMI OUT
2.Removed,only available in earlier version
3.DC IN (9-36V)
4.RJ45(support Power over Ethernet POE)
5.USB2.0((USB Host/USB Slave,can support two USB 2.0 port Max)
6.UART, IO , 3W AMP out
7.Slots for Mounting
8.Screw for Mounting
Q896S In Wall Android Panel with PoE

Customized Service:

RS232/RS485
GPIO
Temperature&humidity Sensor
Power over Ethernet
Customized USB jumper for app debugging

Optional accessories:

PoE
NFC RFID Reading module
LED indicating bar
Arduino Nano
RS232
RS485
GPIO

Power over Ethernet(PoE)
Using Rj45, one cablet could provide power and transmit data.
IEEE802.3af, 48V
Glass Wall Mounting Android OS Tablet RJ45 with PoE

Product Description

Model Number		Q896S
Hardware Specs	Solution	Allwinner’s A283T processor, Octa-Core
	CPU	Octa-Core Cortex TM-A7 CPU A83T 1.2GHz
	Display	7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
	RAM	2GB
	Nand Flash	8GB

Software Feature	System	Google Android 6.0.1
	Video	H.264 2160p video decoding, Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc. H.264 High Profile 1080p@30fps or 720@60fps encoding 3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
	Audio	One Speaker 1 X 1 Watt (Integrated 3W Amplifier)
	Language	Support multi-languages

Interfaces	Back	Ethernet Interface(RJ45)
		HDMI Out
		USB Socket

		DC IN Power Terminal (9V-36V)
		Optional:RS232,RS485,1xGPIO IN, 1xGPIO OUT

Network	WIFI+BLUETOOTH	WIFI (802.11b/g/n), Bluetooth 4.0 support BLE
	LAN Port	Ethernet RJ45

Power Supply	DC IN or POE	DC 9V - 36V

Boot Up	Auto Boot	Auto Boot Up When Power Supplie

Desktop Mounting:

QQ20150609160508

q896-3

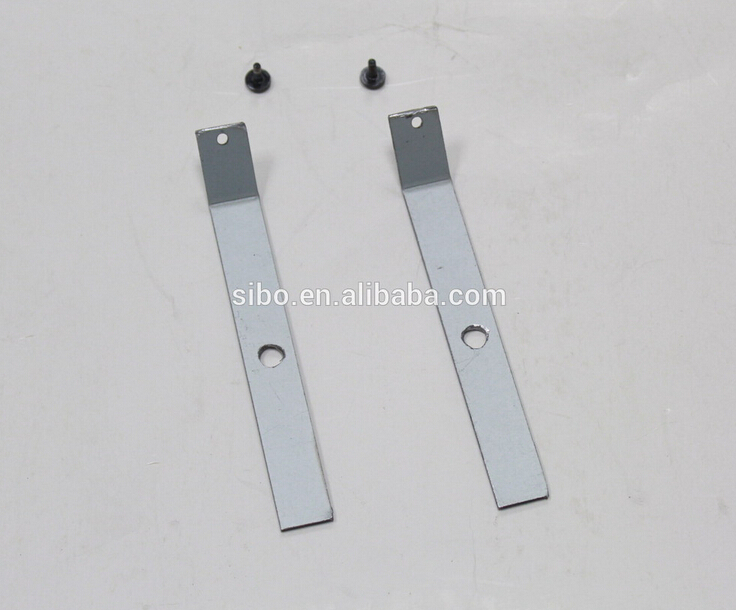

On Glass Wall Mounting:

In Wall Mounting detail:

Glass Wall Mounting Android OS Tablet RJ45 with PoE

Packaging & Shipping

Packaging: 10 pcs for one carton
carton box dimension 28*27.5*26cm

Delivery time: 5 working days for sample, 25 working days for large quantity

Instant response for any questions when it happens.
