SIBO Q896 Android Tablet PC RJ45 P

The Q896 is a colorful network Android touchscreen for home video door phone/intercom. It has inwall, onwall mount, glass wall mount bracket for interior installation, power over ethernet feature to save wire layout, speakers and microphone enable audio and video communication via SIP protocol.

SIBO Q896 Android Tablet PC RJ45 POE

Overview
Power over Ethernet or PoE technology describes a system to safely transfer electrical power, along with data, to remote devices over standard category 5 cable in an Ethernet network. It does not require modification of existing Ethernet cabling infrastructure. The IEEE 802.3af PoE standard provides up to 15.4 W of DC power (minimum 44 VDC and 350 mA) to each device. Only 12.95 W is assured to be available at the powered device as some power is dissipated in the cable. Long distance transmission is available for our max power need about 7w, safe and easy to be used with other POE switch or POE injector ( IEEE 802.3af PoE standard)
What is PD and PSE?
Power Over Ethernet, IEEE802.3af, is constructed by Power Sourcing Equipment (PSE) and Power Device (PD). Our Android Tablet works as a PD and which could powered by some PSE (POE injetor / POE switch)
In/Out protocol Application PD Power Device Power Input from Ethernet(RJ45) Input POE 802.3 AF(15.4W) Home automation / Safety & protection POE 802.3 AT(30W)
Benefits:
	Cost Saving PoE significantly reduces the need for electricians to install conduit, electrical wiring, and outlets throughout the enterprise. With PoE only one cable – a simple CAT-5 Ethernet – is required. Estimates of cost savings using PoE range from $500 to $1,000 per port. In larger settings, this represents a major cost reduction. Flexibility A PoE appliance or device can be located anywhere without the need for AC outlets. For example, wireless LAN access points can be located – and relocated – on or near ceilings, to fine tune optimum RF reception. For example, customers often find that access points are more effective on the ceiling, out of reach from an AC outlet. Reliability Because PoE networks have fewer wires, there is less likelihood of an inadvertent power disruption (accidental shut off, etc). With an Uninterrupted Power Supply (UPS) power to the devices is assured during a power failure. Network Control Using SNMP, network administrators can monitor and control powered devices, including resetting or shut-off. This allows increased security, as devices can be powered down when not in use, or if there is unauthorized access. Safety Power mains are eliminated. Since only 48v DC is used, PoE conforms to Underwriter's Laboratories (UL) Safety Extra Low Volt

SIBO Q896 Android Tablet PC RJ45 POE

Specification:

Model Number		Q896
Hardware Specs	Solution	Allwinner’s A20 processor, a Dual-Core Cortex™-A7 CPU
	CPU	ARM Cortex A7 Dual-Core, 1.2Ghz
	Display	7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
	RAM	1GB
	Nand Flash	8GB
Software Feature	System	Google Android 4.2.2
	Video	H.264 2160p video decoding, Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc. H.264 High Profile 1080p@30fps or 720@60fps encoding 3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
	Audio	Two Speakers 2 X 1 Watt (Integrated 3W Amplifier For External Speakers)
	Language	Support multi-languages

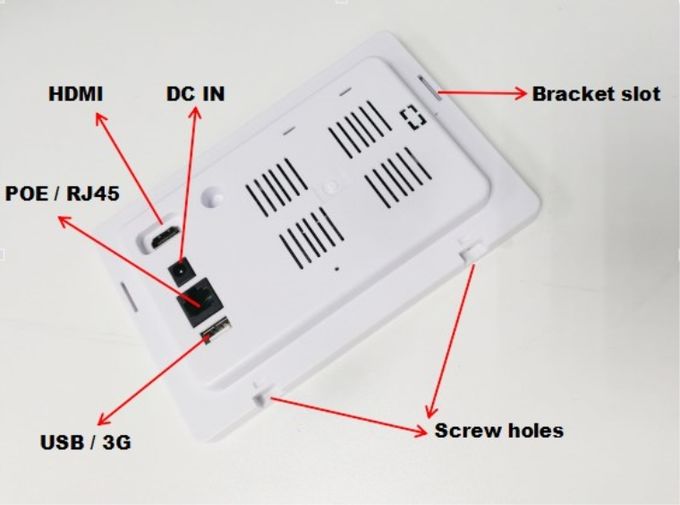

Interfaces	Back	HDMI Out
		DC IN Power Terminal (9V-36V)
		Ethernet Interface(RJ45)
		CVBS IN
		USB Socket HOST Mode By Default, Optional: Jumper Cap For Device Mode
		Optional:RS232,RS485,1xGPIO IN,1xGPIO OUT
Network	WIFI+BLUETOOTH	WIFI (802.11b/g/n), Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
	LAN Port	Ethernet RJ45
Power Supply	DC IN	DC 9V - 36V
Boot Up	Auto Boot	Auto Boot Up When Power Supplies

Desktop bracket and the mounting picture:



Desktop bracket and the mounting picture:



Flush mounting insalltion:





On wall mounting:

Metal box onwall wall mount:

Company information

About us:

Shenzhen Sibo Industrial and Development Company limited, established in 2001. own all plastic moulds of our tablets, has strong ability on plastic casing design and pcb board development with in house engineers. SIBO produces according to the standard of ISO9001, and execute strict raw material and final product inspection. SIBO tablets have passed CE, FCC, ROHS test. All production data are uploaded to our server for history tracking, this data will be stored for 3 years.

Certification:

FAQ:

Question: Are you manufacturer?

Answer: Yes, we are professional manufacturer for intelligent control since established in 2001.

Question: What is your company mainly products?

Answer: Our mainly products are 7'', 9'' and 10.1'' tablet pc which applied for office reservation, time attendance, digital signage, access & security control, home automation, industrial control, energy & power management...

Question: What is the Minimum Order Quantity(MOQ)?
Answer: No quantity limited, sample order is acceptable.

Question: What is the lead time? (How long do you need to prepare my goods?)
Answer: 5-7days for sample orders, 20-25 days for mass production orders(based on different quantities, OEM, etc.)

Question: How will you deliver my goods to me?
Answer: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.

Question: How long do I need to wait before my goods arrive?
Answer: 3-5 days for international express

Question: Can you put my brand name (logo) on these products?
Answer: Of course, OEM service is the most important part of our trade purpose.

Question: What service do you have?

Answer: We have full-technique support (offer sample app and original source code for RS485,GPIO, NFC, etc.)

Question: What is your warranty?

Answer: Our warranty is 1 year after delivery,SIBO pays high attention to after-sales service. For those out of warranty, we repair you without labor charge collection.

Question: What is your product quality?

Answer: 1. We promise to use the best (original) components to ensure our product in high level.

2.All tablet PC have 24 hours aging test.

3.All products will be carefully tested by our QC department.

Powerful Android screen can be used for many applications, welcome OEM orders.
