This Q896S model tablet has upgraded to Android 6.0 system and more convenient to your test. And it can be support inwall flush mount, onwall surface mount,desktop mount and glass wall mount. NFC reader and Temperature and Hunidity sensor can be for your other choice. With RJ45 ethernet port, POE,USB port and GPIO IN and GPIO out, customized RS232/RS485 etc optional configurations for your specific demand,the 7" IPS display panel tablet can be suitable to home automation, industrial controlling, Finance, Medical care, buildings and other control terminal applications

Wall mounted touch screen monitors with POE and for Industrial control

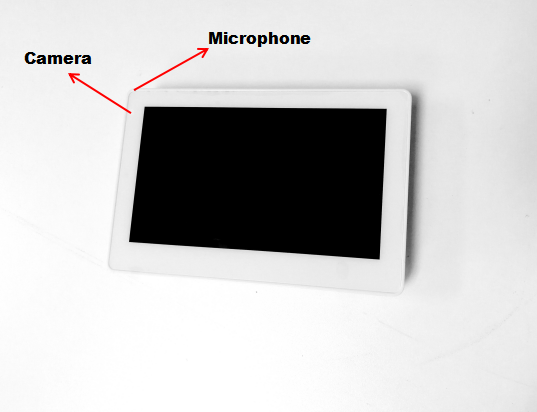

Tablet details display

Tablet dimensions

Tablet with POE ( IEEE802.3af, 48V )

Power Over Ethernet refers to the existing Ethernet Cat.5 cabling infrastructure without any changes in the circumstances, for some IP-based terminals (such as IP phones, wireless LAN access points AP, network cameras Etc.) to transmit data signals at the same time, but also for such equipment to provide DC power supply technology.

POE two power supply methods :

• Mid -Span ( Using a stand-alone PoE powered device, spanning between the switch and the PoE-enabled terminal device, typically uses an unused idle pair of Ethernet cables to carry direct current )
• End-Span ( It is the power supply equipment integrated in the switch signal exit, such an integrated connection generally provides Idle line and data line pairs "dual" power supply.)

About Nano PCB

We can offer you a demo app and source code for your testing and developing.

The definition of

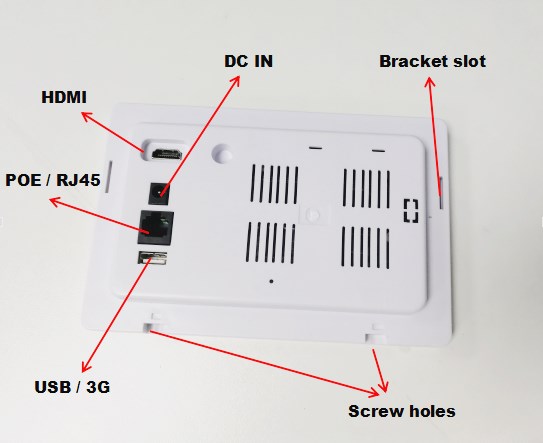

Interfaces

• DC IN Power Terminal ( 9V-36V )
• Ethernet RJ45
• Power Over Ethernet ( IEEE802.3af, 48V )
• USB host/device mode

Network

• WIFI (802.11b/g/n)
• Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
• Power over Ethernet ( IEEE802.3af, 48V )

Mounting

• Inwall mount ( Embedded metal enclosure )
• Onwall mount ( L shape and small metal box)
• Desktop mount
• Glass wall mount

Application

Packing

Devices are packed by air column bag, 10 devices in one carton box

Carton Size:28.5*27.8*31.5cm

Gross Carton Weight: 12 kg

Shipping

Sample lead time: 5-7 working days

Order>100 pcs: 20-25 working days

Sample shipped by express (DHL, TNT, UPS)

FAQ:

Questions: What is the minimum order quantity ( MOQ ) ?

Answer: No quantity limited, sample order is acceptable.

Questions: What does your customization mean?

Answer: We can customize software for you , boot animation, mounting bracket, shell, color and so on. Including all the changes you want

Questions : How many days can be shipped ?

Answer: 3-7days for sample orders, 10-25 days for bulk orders.

Questions: How will you deliver my goods to me ?

Answer: We ship by air and sea generally. Including DHL, UPS, FEDEX, TNT and SF.

Questions: How is your product quality ?

Answer: Our raw materials are purchased from qualified suppliers. Assembled by ourselves. And we have a strong quality control team to guarantee the quality of our products.

Questions: How long is your warranty ?

Answer: Our warranty is 1 year after delivery. SIBO pay a lot attention to after-sales service. it's our pleasure to service of you.

Questions: What we can do ?

ODM/OEM is warmly weclome!

Trial order is acceptable !

Your inquiry is very weclomed. pls feel free contact us if you have any interets for our products.

Shenzhen Sibo Industrial & Development Co. Ltd, which is a high technology grade enterprise, is specialized in R&D, manufacture, marketing and technological services ,with complex management ability and international competing ability.

We are specialized in producing home appliances. Our company was set up in 2001 in Shenzhen City.

Our feature product are 7 inch, 9inch ,10inch tablet pc with multifunction and other electronic products for home automation, industrial Field, Car, Bus System, and so on.
