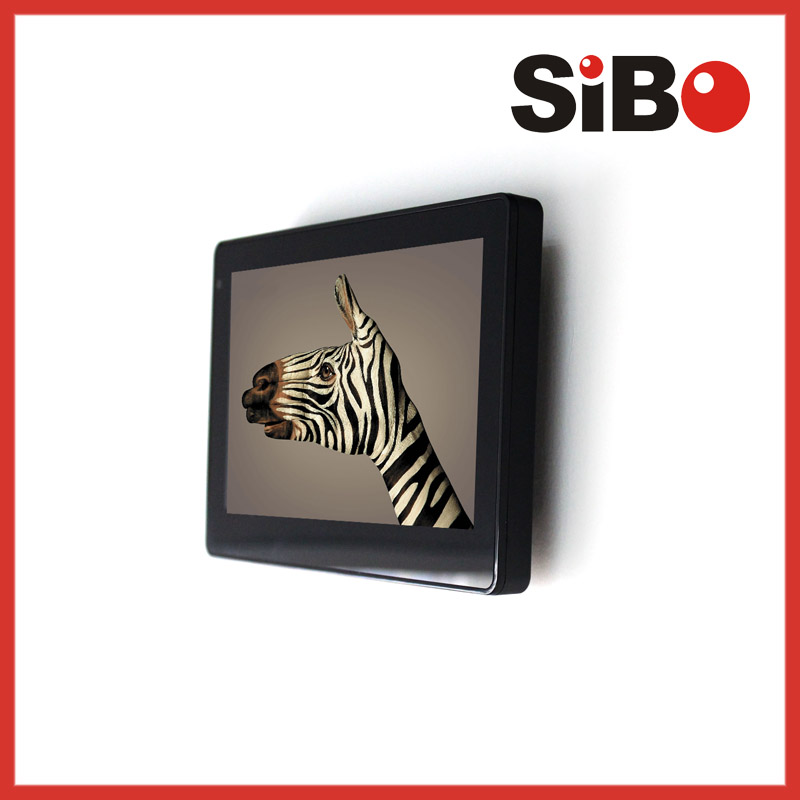

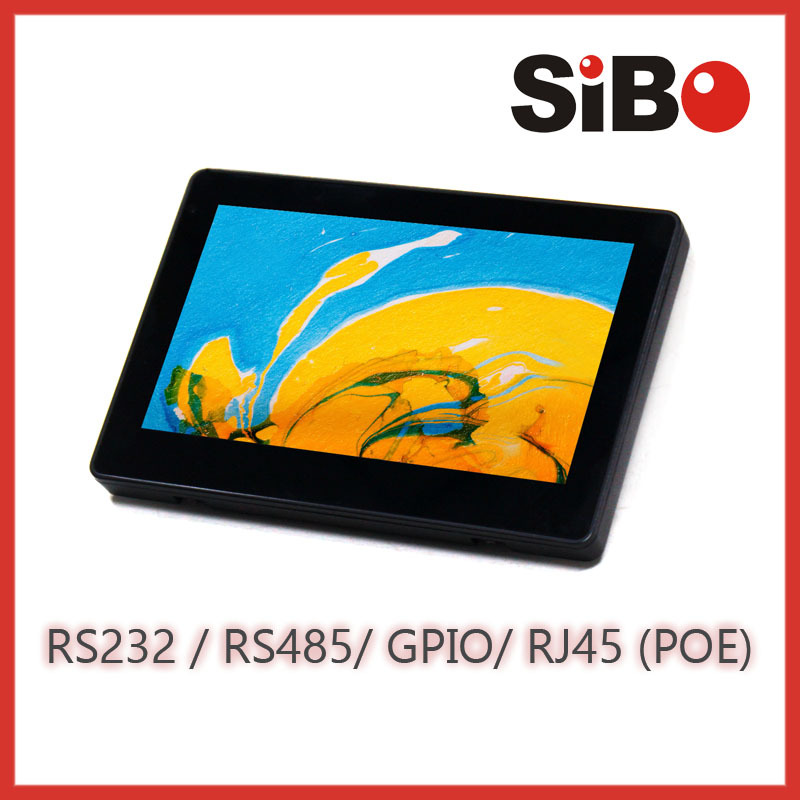

Newest Wall Mount Android 4.4 Tablet With RS232, RS485, POE For Smart Home Automation
Standard accessories;
Optional accessories:
Key Features:
Power over Ethernet
Inwall flush mount/Onwall surface mount/Desktop mount/Glass wall mount
GPIO input/output
Three color led light on the top
Temperature&humidity sensor
Compact design, without any buttons
Model Number | Q896 | |||
| Hardware Specs | Solution | Allwinner Dual-Core Cortex™-A7 CPU | ||
| CPU | ARM Cortex A7 Dual-Core, 1.2Ghz | |||
| Display | 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2 | |||
| RAM | 1GB | |||
| Nand Flash | 8GB | |||
| Software Feature | System | Google Android 4.2.2 | ||
| Video | H.264 2160p video decoding, Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc. H.264 High Profile 1080p@30fps or 720@60fps encoding 3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols | |||
| Audio | Integrated 3W Amplifier (No Speakers, Only Speaker connector) | |||
| Language | Support multi-languages | |||
| Interfaces | Back | Ethernet Interface(RJ45) | ||
| HDMI Out | ||||
| USB Socket | ||||
| CVBS IN | ||||
| DC IN Power Terminal | ||||
| UART, IO, 3W AMP OUT Available | ||||
| Network | WIFI+BLUETOOTH | WIFI (802.11b/g/n), Bluetooth v2.1+EDR/Bluetooth 3.0/3.0+HS/4.0 | ||
| LAN Port | Ethernet RJ45 | |||
| Power Supply | DC IN | DC 9V-24V | ||
| Boot Up | Auto Boot | Auto Boot Up When Power Supplies | ||
| Software | Auto Run Web App | |||
Notice: There is no any battery and buttons as normal Tablet PC ,
auto power on is available !

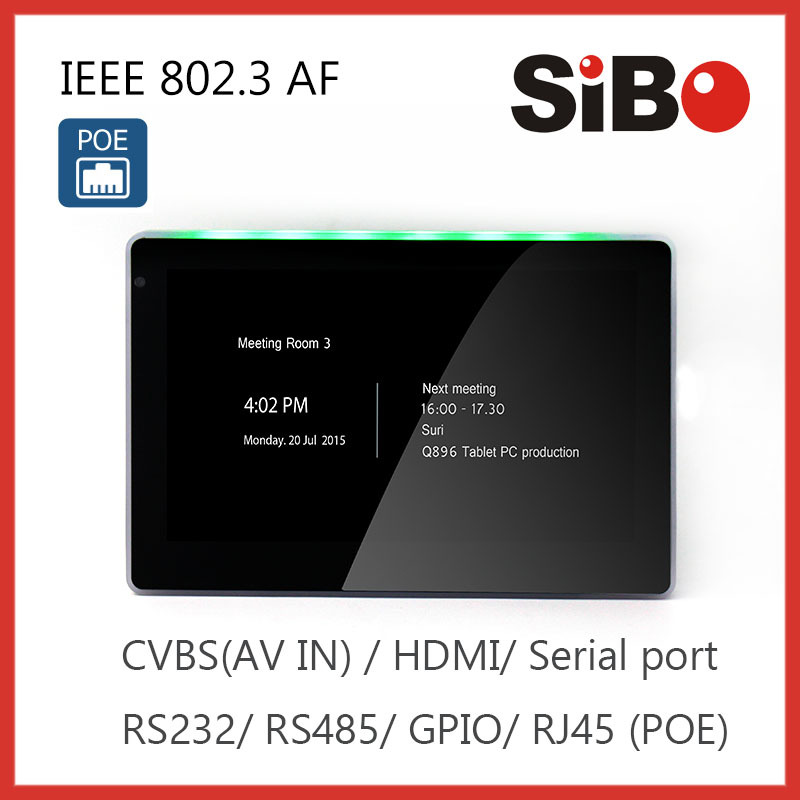

Power over Ethernet(PoE)
Using Rj45, one cablet could provide power and transmit data.
IEEE802.3af, 48V
7 Inch Android Monitor With Ethernet, WIFI, Web Browser For HVAC Control System integrator
1.HDMI OUT 2.Removed,only available in earlier version 3.DC IN (9-36V) 4.RJ45(support Power over Ethernet POE) 5.USB2.0((USB Host/USB Slave,can support two USB 2.0 port Max) 6.UART, IO , 3W AMP out 7.Slots for Mounting 8.Screw for Mounting  |
Onwall Metal Clips(L shape)
Inwall fmount with Mental case Socket:
Devices are packed by air column bag, 10 devices in one carton box
Carton Size:28*27.8*31.5cm
Gross Carton Weight: 12 kg
Sample lead time: 5-7 working days
Order>100 pcs: 20-25 working days
Sample shipped by express (DHL, TNT, UPS)
Welcome the OEM orders for smart home , home automation applications...
|
|
